30-06 M2 AP Black Tip: Penetration, Ballistics, and Accuracy

Quick Answer

WWII-era .30-06 M2 AP "black tip" uses a hardened steel core and remains federally legal (state rules vary). It's known for steel/armor penetration and certain accurate production lots (especially Denver Ordnance). Tests show penetration of roughly 0.42 to 0.50 inches of armor-grade steel at 100 yards, with recorded impact velocities near 2,600 feet per second. . Growing scarcity pushes prices upward. Some reloaders use pulled M2 AP bullets in .308 Winchester cases—though legal and safety concerns apply.

Key Takeaways

• Hardened steel core "black tip" designed for armor penetration
• Federally legal but subject to state/local restrictions
• Denver Ordnance lots earned reputation for long-range accuracy
• Tests confirm 0.42–0.50" armor steel penetration at 100 yards
• Surplus supplies dwindling with rising collector prices
• Pulled bullets can be loaded in .308 (legal/safety cautions apply)

What Is 30-06 M2 AP "Black Tip"?

M2 AP (Armor Piercing) ammunition was developed during World War II for the .30-06 Springfield cartridge and continued to see service through the Korean War. . It gets the "black tip" name from the black paint on the bullet tip—the military’s quick visual tag for armor-piercing rounds. Inside the bullet sits a hardened steel penetrator built to defeat light armor and barriers.

Production began during WWII and extended through the Korean War, with multiple plants producing different lots that varied slightly in performance.. Its design includes a lead base with a hardened steel core. It gives it significant penetration capabilities against steel plates and other hardened targets compared to standard ball ammunition.

The .30-06 Springfield cartridge (pronounced “thirty-aught-six”) entered United States Army service in 1906—hence the “06” in its name. It stayed the primary U.S. rifle and machine gun cartridge for nearly fifty years before newer NATO rounds took over. Even after its military retirement, it remains common in sporting use.

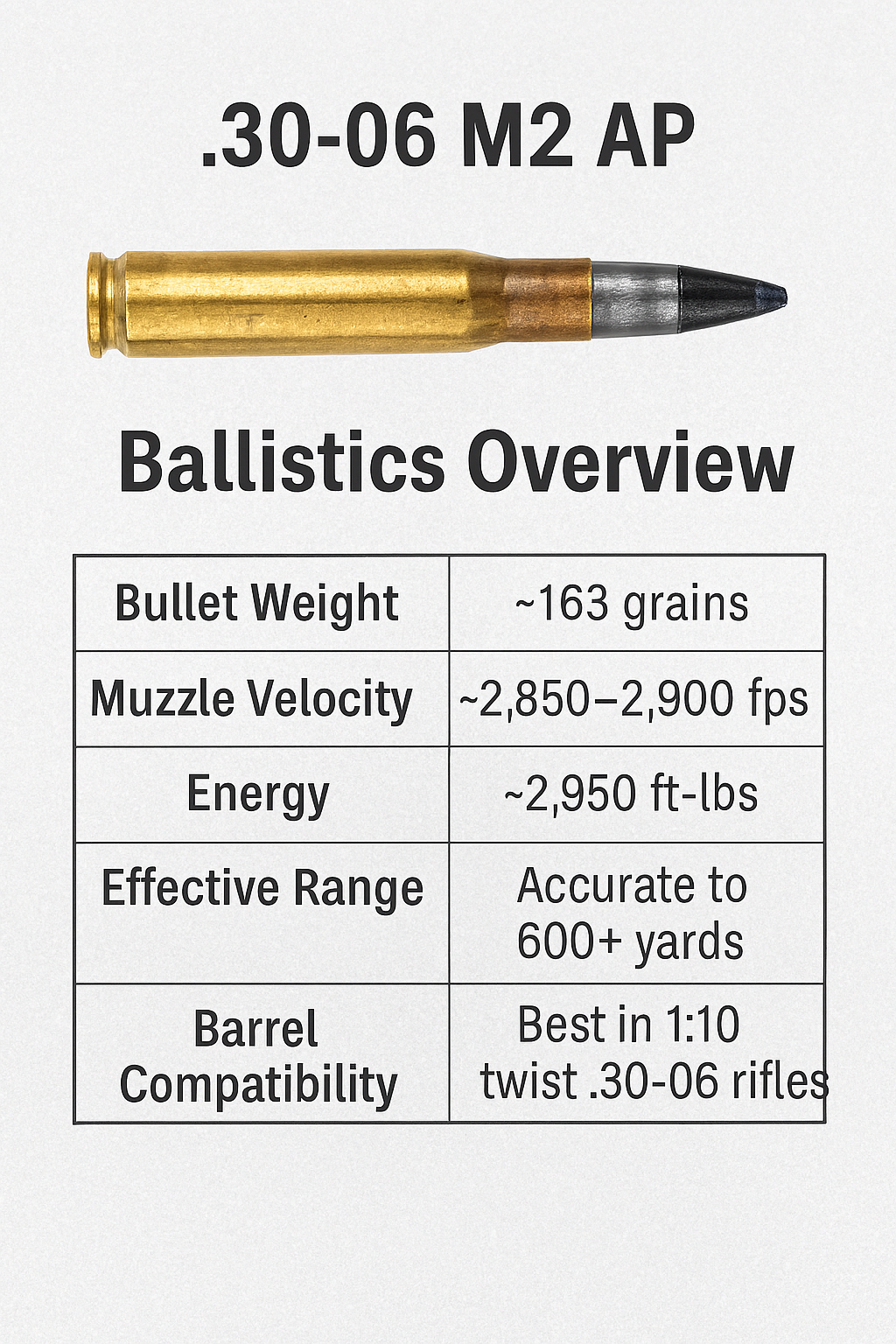

Ballistics Overview

The .30-06 M2 AP round, when fired from rifles such as the M1903 Springfield and M1 Garand, combined long-range capability with effective barrier penetration. . Those platforms shaped how the round performed in real combat.

External flight benefits from the bullet’s mass and shape. In test data, M2 AP rounds impacted 100-yard targets at roughly 2,600 fps, indicating muzzle velocities in the 2,740–2,780 fps range depending on rifle and lot.. That high speed, together with the hardened steel core, explains why military snipers at times chose this round when facing protected targets or barriers.

Accuracy can swing a lot by production lot and plant. During the Korean War, some snipers searched for Denver Ordnance lots, which had shown better long-range results than rounds from other wartime plants. That hunt for certain headstamps shows how much variation existed between batches.

Penetration Performance: What Tests Show

The M2 AP round built its name on proven penetration. Documented testing shows it can punch through at least 0.42 inches (10.67 mm) of armor steel at 100 yards. That is strong performance against light armored vehicles and field fortifications of that era.

Brass Fetchers reported even more capability. Their test showed penetration of up to 0.5 inches (12.70 mm) of MIL-A-12560 armor steel at 100 yards. In that run, impact speed measured 2,601 fps and the plate was fully pierced. Results like this show why these rounds mattered when barriers had to be defeated.

Penetration results vary based on several factors: the target material's exact composition and hardness, impact angle, and the specific production lot. Not all M2 AP rounds perform identically, but their general penetration capabilities exceed standard ball ammunition substantially.

Distance	Target Material	Outcome	Notes
100 yd	Armor steel (0.42")	Complete penetration	Lot / plate hardness affects results
100 yd	MIL-A-12560 (0.50")	Complete penetration (test case)	Measured impact ~2,600 fps

Accuracy at Distance

During WWII and the Korean War, some snipers selected the heavier M2 AP round over standard ball ammunition for certain long-range applications. The extra weight provided better stability in wind and maintained energy better at extended distances.

Historical records show that snipers often sought out Denver Ordnance production lots, which displayed better consistency and accuracy than some other wartime sources. . These particular production batches demonstrated superior accuracy when used for sniping at long range compared to ammunition from other wartime factories. This preference for specific production lots shows how much variation existed between manufacturing sources.

For modern shooters using surplus M2 AP, this history suggests the value of lot testing. Different production batches may show significant variation in group sizes and point of impact. Documenting the performance of specific headstamps helps identify which rounds might offer better precision—a practice just as relevant today as it was during wartime.

Black-Tip Construction & Identification

Authentic M2 AP is easy to spot by its black-painted bullet tip. The military standardized that color so troops could identify armor-piercing rounds at a glance. Inside, you’ll find a hardened steel core, a lead base, and a copper jacket.

When examining potential M2 AP rounds, watch for counterfeits or misidentified ammunition. Some sellers have been known to repaint standard ball ammunition to mimic M2 AP and inflate prices. . Genuine M2 AP has consistent paint application and correct headstamps matching its WWII or Korean War production era.

Condition matters a lot for collectors and for those who plan to shoot it. Check for corrosion, case mouth problems, or pull marks that suggest the bullet was removed and reseated. Storage history also matters—ammo kept in heat or moisture can suffer powder or primer damage, which affects safety and on-target results.

M2 AP Bullets in .308 Winchester

Some reloaders have noted that bullets pulled from .30-06 M2 AP cartridges can be seated in .308 Winchester cases. This approach moves the armor-piercing behavior to a more modern caliber. Independent testing has shown .308 Winchester loads using pulled M2 AP bullets can nearly penetrate 1-inch mild steel, despite producing less energy than the original .30-06 cartridge.

This practice carries real legal and safety concerns. On the legal side, making armor-piercing ammo is tightly controlled under federal rules, and some states ban possession of any AP ammunition, no matter the caliber. Always check current law before trying such reloads.

On safety, these loads require careful setup for seating depth, pressure signs, and step-by-step load development. The .308 Winchester case does not match the .30-06 inside dimensions, so you cannot copy loads directly.

Legal Status

At the federal level, .30-06 M2 AP remains legal for civilian ownership as of this writing. The ATF definition of armor-piercing ammunition mostly restricts handgun ammunition, not rifle cartridges like the .30-06. The .30-06 M2 AP remains federally legal for civilian possession, since ATF armor-piercing definitions primarily apply to handgun ammunition.

State and local rules vary widely. Some places ban all armor-piercing ammunition. Others use narrow definitions or carve-outs. Always review your local laws before you buy or move AP ammunition.

Range rules also come into play. Many commercial ranges do not allow armor-piercing rounds because of backstop damage, fire risk from sparks, and ricochet concerns. Call the range before you bring M2 AP. Steel targets are often banned for AP use due to damage and safety issues.

Availability, Pricing & Sources

As surplus from the WWII and Korean War periods, the supply of .30-06 M2 AP keeps shrinking. What was once common is now harder to find, and prices have climbed.

Current market prices often sit above $4 per round, and rare or sought-after headstamps can sell for even more. Condition, headstamp, and original packaging all affect value. Once common on the surplus market, M2 AP has become increasingly scarce as production ended more than 60 years ago.

Most M2 AP ammunition today changes hands through specialized firearms auction sites like Gun Broker, collector forums, gun shows, and established surplus dealers. For buyers, verification of authenticity through correct headstamps and legitimate black-tip identification proves crucial. Be wary of corroded rounds, repainted tips, or ammunition with signs of improper storage—all common issues with decades-old surplus.

Comparisons

Compared to standard .30-06 ball ammunition, the AP variant offers superior penetration at the cost of availability and higher expense. Standard ball ammunition remains much more common and affordable but lacks the barrier-defeating capability of genuine black tips.

Against modern armor technology, M2 AP represents an older design. Contemporary Level III, III+, and IV armor plates employ materials and design principles specifically created to defeat threats including AP rounds. Modern ceramic composite armor defeats rounds through fracture and energy dispersion, a very different mechanism than the steel plate armor the M2 AP was originally built to defeat.

Today's primary legitimate uses for M2 AP include historical collection, controlled testing (where legally permitted), and data gathering. Some long-range shooters still appreciate certain production lots for their accuracy, particularly the Denver Ordnance batches mentioned earlier.

Safety Fundamentals

The hardened steel core of M2 AP ammunition creates special safety considerations. Backstops designed for standard lead-core bullets often fail to contain armor-piercing rounds; always use backstops specifically rated for AP ammunition.. Always use backstops rated for armor-piercing ammunition, and maintain conservative shooting angles to prevent skips and ricochets.

Only use targets specifically rated for AP ammunition. Firing at regular steel targets can cause dangerous fragments, ricochets, and target destruction. Avoid firing AP rounds at any unverified or improvised steel targets, as unpredictable ricochets and fragmentation present serious injury risks.

Personal protective equipment matters even more with AP ammunition. Wear full eye protection and hearing protection. Keep safe distances on the line. And keep clear callouts so the person on the gun and the spotter both know when AP rounds are in use.

Store and handle with care, then inspect each lot. Surplus M2 AP can be old, so check every cartridge for corrosion, split necks, or bullets that were pulled and reseated. Do not fire any round that looks compromised. Follow local rules for proper disposal.

Conclusion

The .30-06 M2 AP “black tip” stands as a defining chapter in 20th-century U.S. military ammunition history.. Its penetration, its place in service use, and the lore around certain production lots still draw interest from collectors and range users.

If you obtain these rounds, know their strengths, legal status, and safety needs. Newer designs may exceed the M2 AP in many ways, yet these black-tipped cartridges still set a benchmark in armor-piercing development.

As supplies fade, the M2 AP’s role in firearms history grows clearer. It’s a direct link to wartime engineering that shaped modern ammunition design.

The .30-06 M2 AP round has a well-earned reputation for deep penetration and long-range capability — but how far out can you really reach with your .30-06? For rifle recommendations that maximize the cartridge’s range potential, check out our Best .30-06 Rifles for Long-Range Hunting and Target Shooting.

Frequently Asked Questions (FAQ)

Is 30-06 M2 AP legal to own?

At the federal level, yes. Rifle AP is not the same as handgun AP. State and local laws can differ a lot. Always check current statutes before you buy or transport.

How much armor can M2 AP penetrate?

Documented tests show about 0.42–0.50 inches of armor steel at 100 yards. Plate hardness, impact angles, and ammunition can change results.

Can I load pulled M2 AP bullets into .308?

Yes, but serious safety, pressure, and legal limits apply. Check local laws, as some places treat this as making AP ammunition.

Is it safe in an M1 Garand?

Consult a qualified armorer. Gas-system dynamics and pressure curves matter more than just the headstamp. The M1's operating system requires careful ammunition selection.

Where can I buy it today?

Primarily through collector/auction sites like Gun Broker. Expect variable conditions and rising prices. Always verify headstamps and check for proper storage history.
